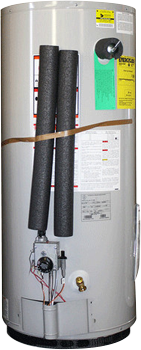

XCVL50
ProMax is an economical water heater designed for households that need an exceptional performer.
Features:
- Dynaclean diffuser dip tube - helps reduce lime and sediment buildup, maximizes hot water output. Made from longlasting PEX cross-linked polymer.
- Green Choice gas burner - patented "Eco-Friendly" design reduces NOx emissions by up to 33% and complies with Southern California and Texas requirements
- Coregard magnesium anode
- Push-button Piezo ignitor - makes lighting pilot fast and easy with one-hand push-button spark ignition
- Durable tamper-resistant brass drain valve
- Permaglas glass coating -protects steel tank from rust
- CSA certified and ASME rated T&P relief valve
- External heat trap nipples supplied on all models EXCEPT XCV-50/GCV-50
- Equipped with C3 technology
PLEASE NOTE: The product weighs 179 lbs. and may require the use of a
If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Specs
| Intended Household: |
3-4 Person |
| Application: |
Plumbing |
| Capacity (Gallons): |
50 |
| BTU Input: |
40000 |
| Fuel Type: |
Natural Gas |
| Vent Size: |
3" |
| |
4" |
| Venting: |
Atmospheric |
| Water Connection: |
3/4" |
| Height (Inches): |
53.25 |
| Diameter (Inches): |
24" |
| Weight (lbs): |
168 lbs |
| Depth (Inches): |
24" |
| Gas Connection: |
1/2" |
| 1st Hour Delivery (Gallons): |
80 |
| R-Value:
|
8 |
| Recovery 90°F Rise: |
41 GPH |
| Energy Factor: |
0.58 |
| Energy Star Rated: |
No |
| Warranty: |
10 yr Tank/6 yr Parts Limited |
