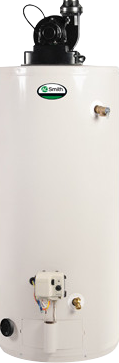

GPVX75

GPVX75

Note: This model comes with side mounted recirculating taps.

The ProMax Power Vent water heaters have been engineered to maximize efficiency and deliver a greater energy factor (EF).

Features

    • Note: This model is not ENERGY STAR Qualified
    • Dynaclean II dip tube optimizes inlet water pressure to minimize cold water regions within the tank. The self-cleaning action also reduces sediment accumulation on the bottom of the tank.
    • Hot-surface ignitor is more robust and reliable than standing pilot, and reduces energy consumption.
    • Built-in heat traps on the water inlet and outlet reduce the amount of heat lost through piping
    • 2-inch, thick, "Environmentally-Friendly" foam insulation reduces the amount of heat loss and contributes to overall energy efficiency
  • Versatile Power Vent Design
    • All models feature an exclusive 3-position rotatable blower outlet which adds flexibility
    • Combined horizontal and vertical vent runs up to 180 equivalent feet with 4" diameter venting (ABS, PVC, CPVC and polypropylene)
    • All models are equipped with a protected sensor that detects the presence of flammable vapors and automatically disables the burner to prevent ignition
    • Air intake snorkel elevates the inlet location of combustion air to prevent flammable vapors from entering the sealed combustion chamber
    • Reduced NOx emissions comply with air quality management district regulations
  • User-Friendly
    • State-of-the-art electronic gas control provides more precise temperature control
    • LED control light displays operation status and diagnostics information
    • Factory-installed T&P and a durable, tamper-resistant brass drain valve are positioned for service accessibility
  • Available in Natural Gas and Propane
  • 6 year limited tank and parts warranty



    PLEASE NOTE: The product weighs 277 lbs. and may require the use of a  If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.



Specs

Application: Plumbing
Intended Household: 5+ Person
Features: Side Connection
Fuel Type: Natural Gas
Capacity (Gallons): 75
BTU Input: 76000
Gas Connection: 1/2"
Water Connection: 3/4"
Vent Size: 3"
Venting: Power Vent
Vent Size: 4"
Vent Type: Polypropylene
  CPVC
  ABS
  PVC
Energy Star Rated: No
Recovery 90°F Rise: 80.4 GPH
Height (Inches): 70.625
Depth (Inches): 33-1/8"
Diameter (Inches): 26"
Weight (lbs): 277
Warranty: 6 yr Tank/6 yr Parts Limited
