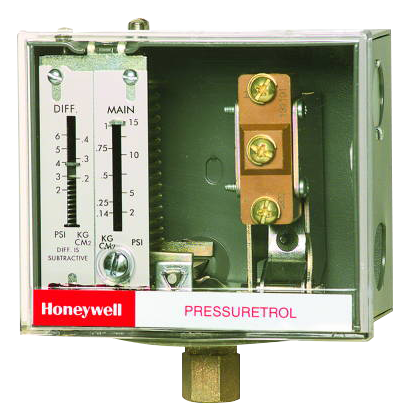

Item No: L404F1367

Overview Provide operating control with automatic limit protection for pressure systems up to 300 psi (2068 kPa). Features Use with steam, air, noncombustible gases, or fluids non-corrosive to pressure sensing element. Models have snap-acting switching to open or close a circuit on pressure rise. Have adjustable differentials. Adjustments are made by screws on top of case. Mount using 1/4 inch -18 NPT internal pipe threads or surface mount through base of case. Ground screw terminal. Product Specifications ApplicationProvide control of steam, air, non-combustible gases or non-corrosive fluidsDimensions (in.)4 27/32 in. high x 4 1/2 in. wide x 3 1/4 in. deepDimensions (mm)126 mm high x 114 mm wide x 70 mm deepCommentsRange Stop installed at 8 PSIMounting1/4 inch- 18NPT connection on diaphragm assembly; or surface mounts using holes in back of case.Approvals, Underwriters Laboratories Inc.Listed: File No. MP466, Guide No. MBPRApprovals, CSACertified: File No. LR95329Electrical ConnectionsScrew terminalsContact Ratings120 Vac Switch Contact-- 8.0 AFL, 48.0 ALR, 10.0 A resistive; 240 Vac Switch Contact-- 5.1 AFL, 30.6 ALR, 5.0 A resistiveOperating Temperature Range (F)-35 F to +150 FOperating Temperature Range (C)-37 C to +66 CApprovals, Swiss REAcceptableSensor ElementStainless Steel diaphragmOperating Range (psi)1 to 8 psi; 25 psi - Maximum SustainedOperating Range (kPa)7 to 55 kPa; 172 kPa - Maximum SustainedDifferential Pressure Range (psi)0.75 to 2 psiDifferential Pressure Range (kPa)5 to 14 kPaDifferential TypeSubtractiveSwitch OperationAuto recycleSwitching ActionSnap switch breaks R-B (closes R-W) on pressure rise. Make-on devices omit terminal B.Pipe ConnectionMain or High Pressure--1/4 in. NPT internal thread
